Digital Video Projection

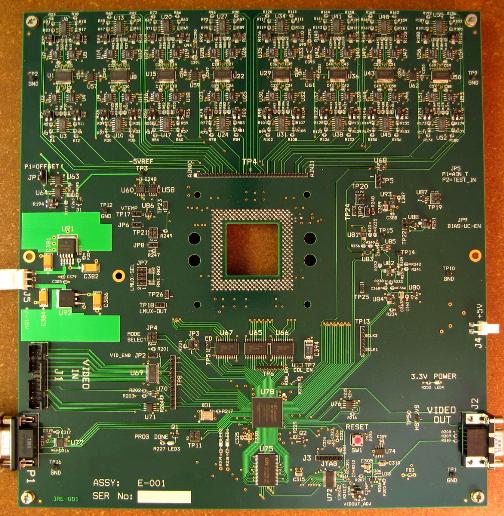

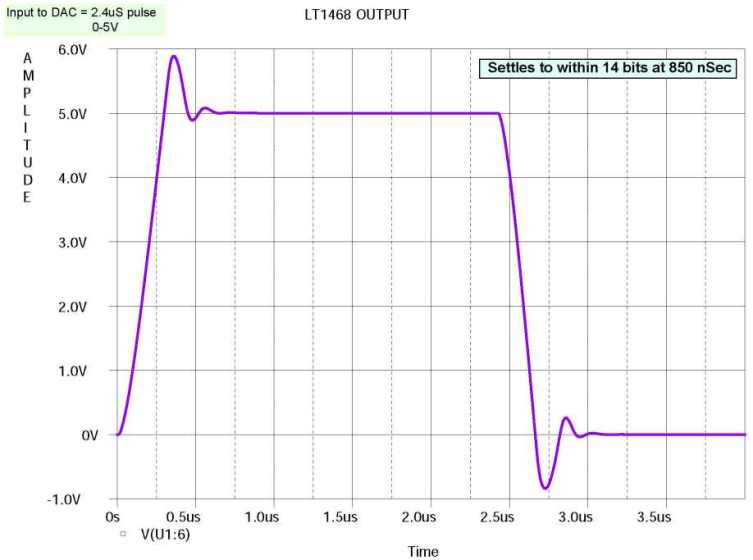

This design was used for testing a video projection chip. The big square cut-out with the PGA is where the DUT plugs in (from the back). The major components consist of Eight DAC8814 DACs with LT1468 OP-Amps used as the I-V converters, and a Xilinx Spartan 3A. Serial NVRAM is used for storing two static test and calibration images.

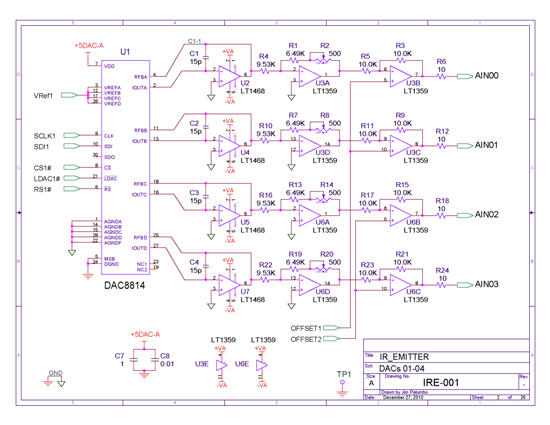

DAC circuit (1 of 8)
