Compact Flash

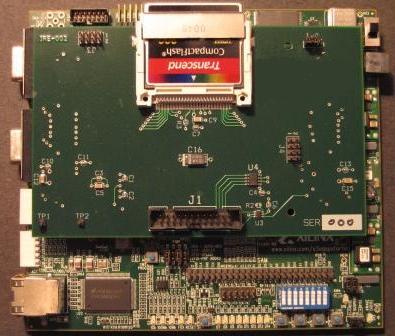

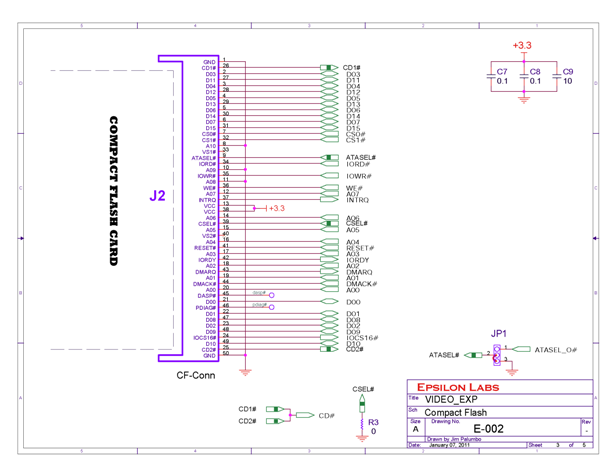

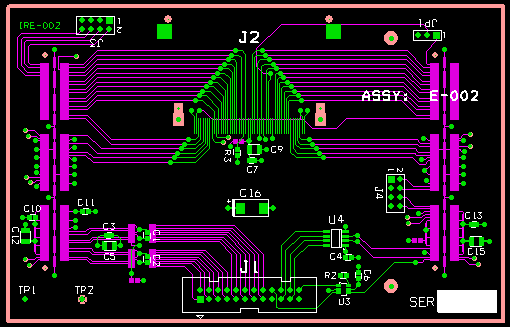

This is a custom EXP expansion module for the Xilinx Spartan 3A-DSP S3D1800A demo board. It basically provides the hardware interface to a type I or II Compact Flash card. The board also includes a high speed LVDS interface (J1) for transmitting data to another board. The FPGA can read data from the CF card at up 100 Mbytes/sec continuous (UDMA mode 5) and output it through the LVDS interface.
Originally used for Digital Video but can be used for any high speed waveform generation.
Originally used for Digital Video but can be used for any high speed waveform generation.
